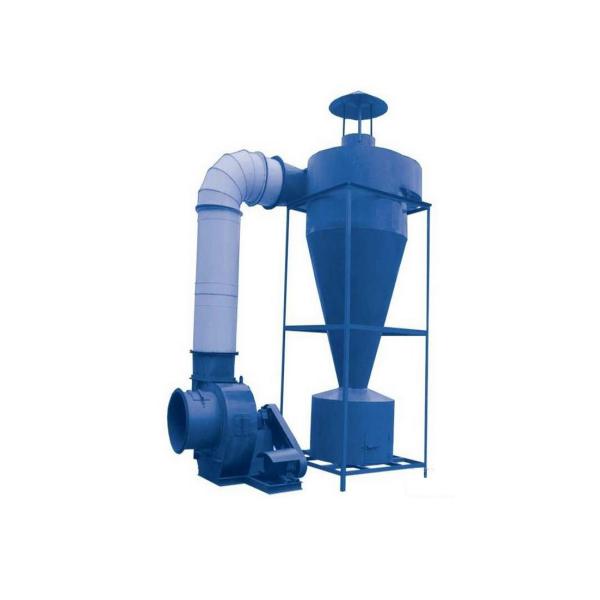

The Silent Cyclone Dust Collector 5.5HP Industrial Dust Removal System is a high-efficiency solution designed for woodworking, sawing, and sanding applications. This equipment combines advanced cyclone separation technology with a low-noise air filtration design, ensuring clean and safe workshop air while minimizing operational noise.
The system operates on the principle of cyclone air separation, where high-speed airflow creates a strong centrifugal force that separates dust particles from the air. The heavier dust settles into the collection hopper, while purified air is discharged from the top outlet. Equipped with a 5.5HP motor and a 10-inch outlet, this dust collector provides consistent suction power and exceptional filtration efficiency — ideal for furniture factories, carpentry workshops, and industrial sanding lines.
Constructed with mild steel and non-woven polyester filter bags, the collector guarantees durability, stability, and long service life. Its filter efficiency ≥99.9% and collection efficiency 99% meet international dust emission standards, ensuring environmental compliance and a healthier workspace. The integrated PLC control system and customizable pulse cleaning valve allow for easy operation and maintenance, making it a perfect fit for continuous industrial dust removal.
This industrial cyclone dust collector supports customizable configurations to match different air volumes and filtering requirements. The machine is widely used for woodworking dust collection, furniture production, and sanding applications, offering high reliability and excellent cost performance for modern workshops.
⚙️ Technical Parameters
| Parameter | Specification |
| Filter Area | 300 m² |
| Structure | Bag Dust Collector |
| Product Model | QMC-300 |
| Air Pressure | Tailored |
| Product Voltage | 220/460 V |
| Product Capacity | 5000–10000 CFM |
| Customized | Accept |
| Color | Black+Yellow |
| Product Material | Mild Steel |
| Control System | PLC |
| Minimum Particle Size | 0.5 Micron |
| After Warranty Service | Video Technical Support |
| Marketing Type | Hot Products In 2024 |
| Motor Power | 5.5HP |
| Application Field | Furniture |
| Outlet Size | 10 Inches |
| Port | Tianjin |
| Frequency | 50/60Hz |
| Filtering Material | Filter Cartridge |
| Pulse Valve | Customize |
| Application | Dust Collection |
| Feature | High Dust Removal Efficiency |
| Material Of Bag | Non-woven, Polyester |
| Filter Efficiency | ≥99.9% |
| Collection Efficiency | 99% |
| Filter Speed | 1.20–1.50 L/min |
| Airflow | 5000 CFM |
| Thickness | 3.0–5.0 mm |
| Machinery Test Report | Provided |
| Selected Type | Round Shape |
| Condition | New |
